KENEX (ELECTRO-MEDICAL) LIMITED - Radiation protection

Table mounted, suspended, and mobile solutionsHarlow, englandEnglishRecommendations : 0

Not verified

Appointment

About

Established in England in 1970, Kenex (Electro-Medical) Limited have always been committed to creating medical products of outstanding quality, reliability, and style. Having a strong presence in the UK, and a successful expansion into overseas, Kenex is now among the world’s leading manufacturers and suppliers. We serve hundreds of companies including the industry’s major OEMs and continue to evolve and improve our product range and service.

Products

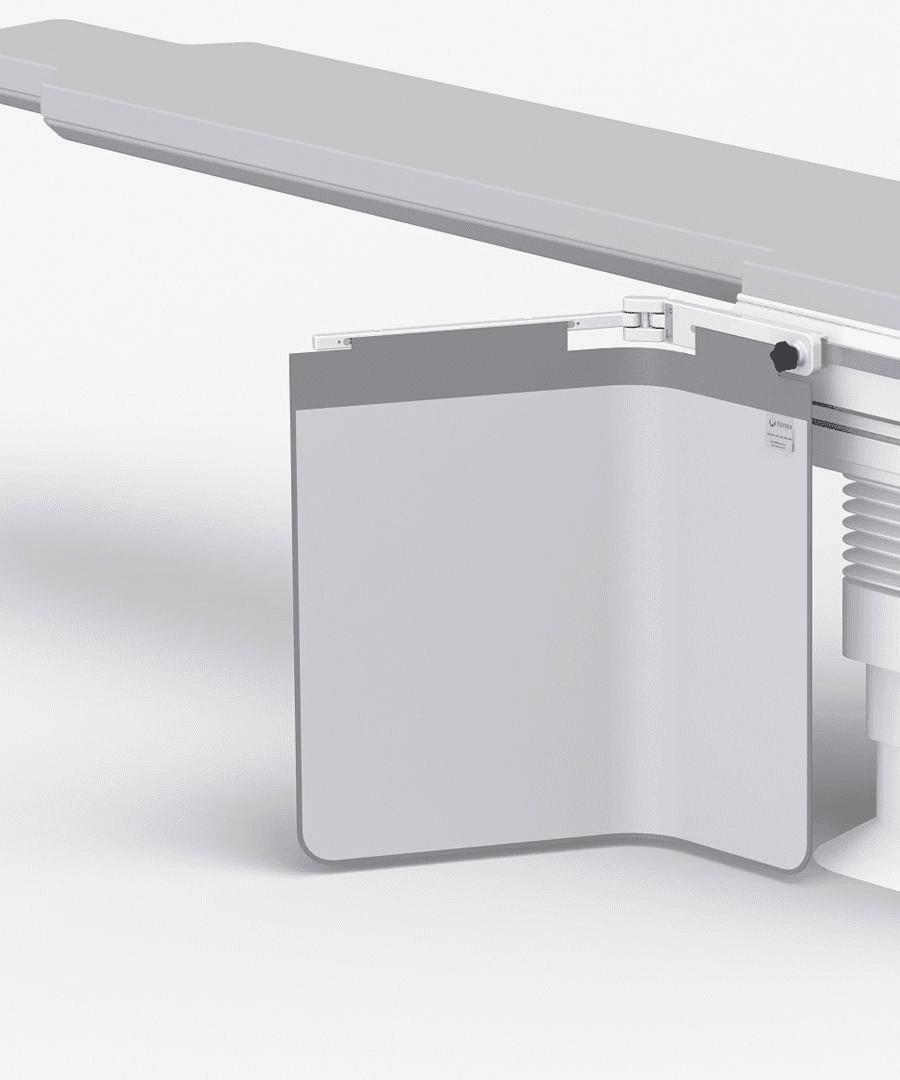

78 cm wide table shields 312/E-005, -006, -007

78 cm wide table shields with a single friction pivot 78 cm wide table shields reduce exposure to scatter radiation emanating from the table or patient’s body. Easily mounts to either side of the table allowing pivotal arm to always face the head end. Lightweight, durable structure supporting a flexible lead curtain (0.5 mm lead equivalent). The curtain is available in one piece or split into three separate overlapping panels. 78cm wide x 70 cm high curtain providing a safe zone of occupancy. 29 cm wide attachment bracket slides onto a 25 mm or 28.6 mm high tableside rail (max. 11 mm depth). A pivotal arm with a single friction pivot can swivel outwards to form a 49 cm wing. Self-adjusting friction pivot ensures no unwanted curtain movement even when the table is tilted. Curtains 0.5 mm lead equivalent layer is bonded to its outer covering meaning the protective layer cannot tear or fall away unnoticed. Curtain forms around an under table x-ray tube without impeding movement. If required, the curtain can also hold two semi-flexible top shields, 1 x 57 cm & 1 x 27 cm. Optional, standard height top shields: 1 x 57 cm wide semi-flexible, lift-off top shield (312/DS/3.32) 1 x 57 cm wide semi-flexible, fold-down top shield (312/DS/3.33) 1 x 27 cm wide, semi-flexible, lift-off top shield (312/DS/3.30) Optional, reduced height top shields: 1 x 57 cm wide semi-flexible, lift-off top shield (312/DS/3.128) 1 x 57 cm wide semi-flexible, fold-down top shield (312/DS/3.139) 1 x 27 cm wide, semi-flexible, lift-off top shield (312/DS/3.108)

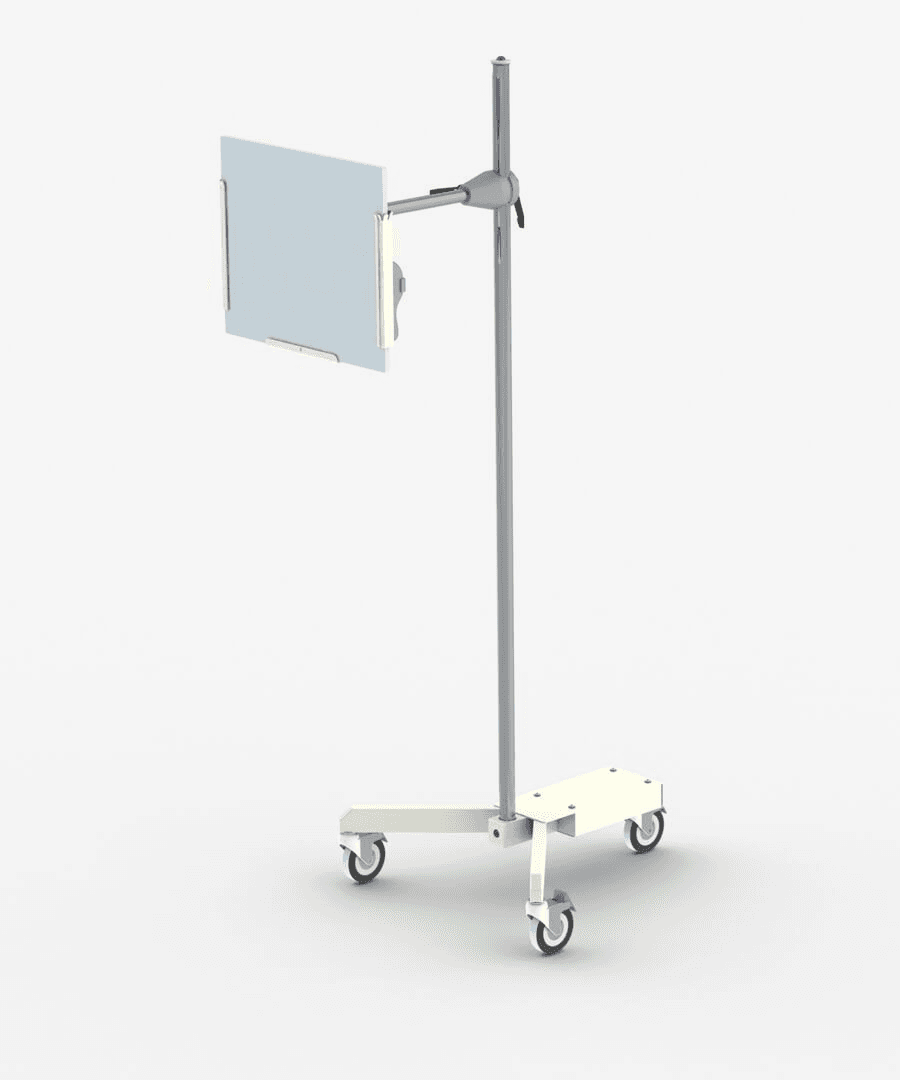

Mobile DR detector and cassette holder 1305/8/1

Portable DR Panel and CR/film cassette holder with unlimited orientation. Telescopic width adjustable from 24.5 cm to 53.5 cm. Holds full leg/spine image receptors of any length. Not counterbalanced but allows easy height adjustment from floor level to 142 cm. Overhangs table or trolley by up to 49 cm. Accepts image receptor/cassette of any length and up to 30 mm depth. Heavy base and low centre of gravity gives added stability. Easy to clean hardwearing surfaces.
